Since 2020, Poolex proposes a new range of products to maximize your heat pump performance.

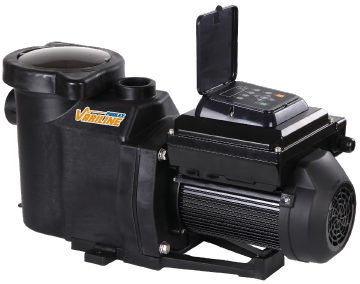

The Variline variable-speed filter pump offers a number of advantages making it your POOLEX heat pump's next best friend:
- Maximizing your heat pump output thanks to a 24/7 low flow operating function, and enabling a quicker rise in temperature and a better energy-efficient maintenance of the pre-set temperature. Up to 80% of energy saved depending on use.

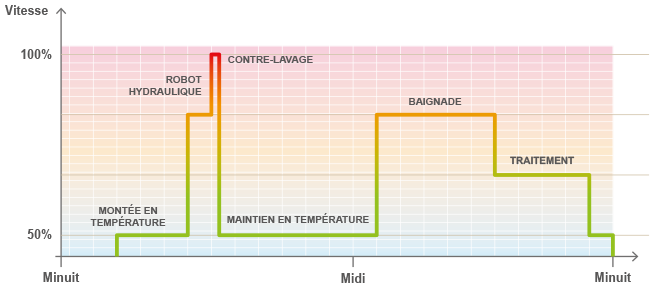

- Its 4 programmable speeds are useful in adjusting the filtration flow according to the season and pool usage, be it off-season/peak periods, after schock treatment ou when backwash. Programming the flow at the touch of a button on the control pannel makes pool maintenance so much easier!
- From another standpoint, a low flow has the advantage of allowing the sand filter to work more in depth and avoid clogging.
| Model | Variline 15H | Variline 10P | Variline 15P | Variline 20P | Variline 30P | ||
|---|---|---|---|---|---|---|---|
| Swimming pool volume (m3) | 75 | 50 | 75 | 85 | 100 | ||
| Useful power (CV) | 1,5 | 1,0 | 1,5 | 2,0 | 3,0 | ||
| Connector diameter | 1,5"x1,5" | 2"x2" | |||||
| Motor type | Permanent magnet synchronous | ||||||
| Output | 80% | ||||||
| Speed modulation | 450 - 3450 RPM | ||||||

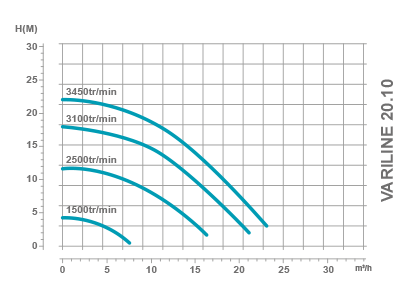

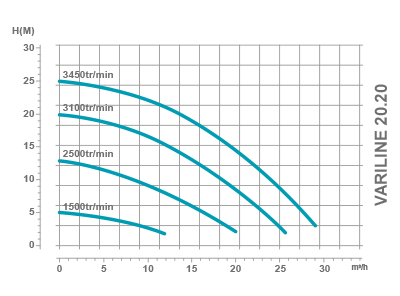

| Flow at 10 mce (m3/h) | 17,5 | 19 | 22 | 24,3 | 28,2 | ||
|
Max. flow (m3/h) |
21 | 23 | 27 | 29 | 33,3 | ||

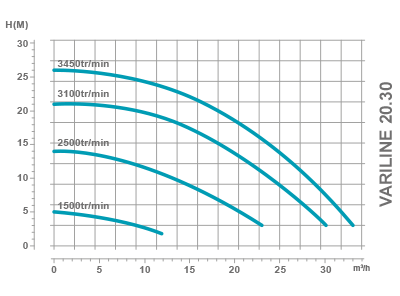

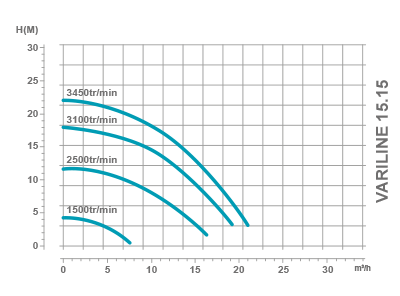

| Max. dynamic head (m) | 22 | 24 | 25 | 26 | |||
| Power supply | Mono 230V - 50Hz | ||||||
| Dimensions in mm (L x W x H) | 596x270x306 | 605x270x338 | |||||
| Max. current (A) | 5,5 | 7 | 8 | 10 | |||
| Warranty | 3 years | ||||||
Your filter pump transfers water from your pool through the filter and through your heat pump. But, output levels can vary depending on swimming periods and pool treatment.
Running a variable-speed pump at 50% for 24h instead of an On/Off pump for 8h saves around 80% of energy.

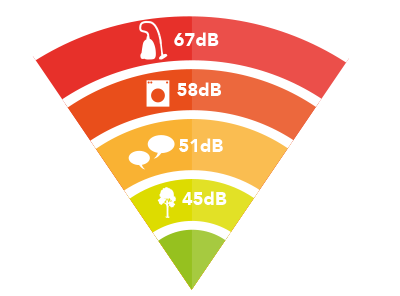

At a slow speed, sound levels are divided by 4 compared to a constant-speed pump.

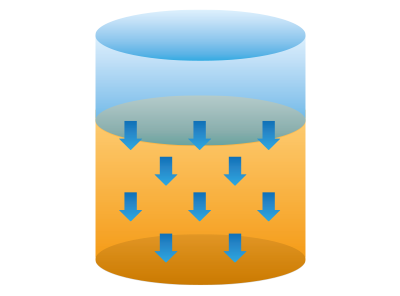

As water passes more slowly through the filter, filtering is improved and the filter does not become clogged as quickly.
Increased lifetime: as the motor and compressor do not run continually at full capacity, they are used less, heat less and wear less quickly.
Pump warrantied 3 years
