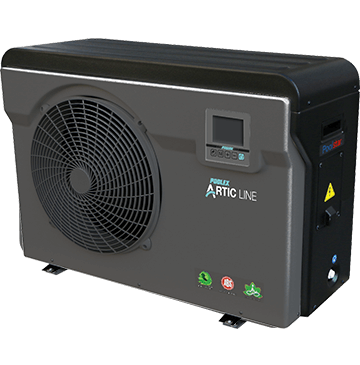

POOLEX believes that regions with cold climates have the right to their own heat pump, which is why the ARTIC LINE was created.
The ARTIC LINE Premium underlying philosophy is to tackle the challenge of heating pools 12 months of the year, across all of France and 80% of Europe.
Its Heavy Tech compressor means that it can overcome the problem of a lack of refrigerant flow when the temperature is too low, thanks to its high capacity.
This translates into remarkable performance even over very low temperature ranges with a COP of 2.97 at -7°C or 2.05 at -25°C. This remarkable performance make the Artic Line ideal for mountainous regions and extreme climates. Likewise, it allows you to use your heat pump all year round, whatever the outside temperature. Even at -25°C you will halve your energy consumption with the Artic Line.
Poolstar, confident of the reliability of the Premium range, is increasing its warranty to three years and offers a sophisticated after-sales services.
| Modèle | Artic Line 160 | |||
|---|---|---|---|---|
| Pool volume (m3) | From 50 to 85 | |||
|
Condition : Air 26°C Water 26°C Hygro 80% |
Capacity (W) | 19860 | ||
| Power Consumption (W) | 3530 | |||
| COP | 5,62 | |||
|
Condition : Air 15°C Eau 26°C Hygro 70% |
Capacity (W) | 15200 | ||
| Power Consumption (W) | 3030 | |||
| COP | 5,01 | |||
|
Condition : Air -25°C Eau 26°C Hygro 70% |
Capacity (W) | 4470 | ||
| Power Consumption (W) | 2180 | |||
| COP | 2,05 | |||
| Power Supply | Mono 230V/50Hz | |||
| Max. power (W) | 5520 | |||
| Max. current (A) | 24,3 | |||
| Heating temperature range | 9°C / 40°C | |||
| Operating range | -25°C / 43°C | |||
| Flow (m3/h) | 6,8 | |||
| Refrigerant | R410A | |||
| Packaging dimensions (mm) | 1242 x 485 x 844 | |||
| Dimensions (mm) | 1215 x 485 x 713 | |||
| Net/gross weight (kg) | 115 / 127 | |||
| Noise at 1 m(dB(A)) | <51 | |||
| Noise at 4 m(dB(A)) | <41 | |||
| Noise at 10 m(dB(A)) | <32 | |||
| Compressor Type | Scroll | |||
| Compressor Brand | Copeland | |||
| Heat exchanger | Double titanium coil | |||
| Function | Auto / Heating / Cooling | |||
| Load loss (mCE) | 1,3 | |||
* Standard Européen en condition Air 15°C, Eau 26°C, et Hygro 70% certifié par TÜV
Delivered on wooden pallet
Winter storage
Maintenance kit Including multi-language usermanual
PVC CONNECTORS
Ø 50mm 1’’ 1/2
Wired Control Extention (10 m)
Condensation Drainage Pipe
Anti-vibration support kit
Heat pump guaranteed
3 years
Compressor guaranteed
7 years
Titanium coil guaranteed 15 years
against corrosion
