Platinium Mini

Ideal for swimming pools from 30 to 50m3

for swimming pools
up to 50 m3
operates
down to -10°
2 versions
available

A bold design in ABS and available in 2 powers to meet the needs of the majority of pools up to 50m3.A bold design in ABS and available in 2 powers to meet the needs of the majority of pools up to 50m3.

In line with the Platinium, flagship of the Poolex brand, the Platinium Mini and its original design blends harmoniously into the architecture of your garden.

Available in 2 powers for swimming pools with a maximum volume of 50 m3, the Platinium Mini is equipped with all the features for which Poolex heat pumps are renowned: Full Inverter technology, WiFi control and LED indicators.

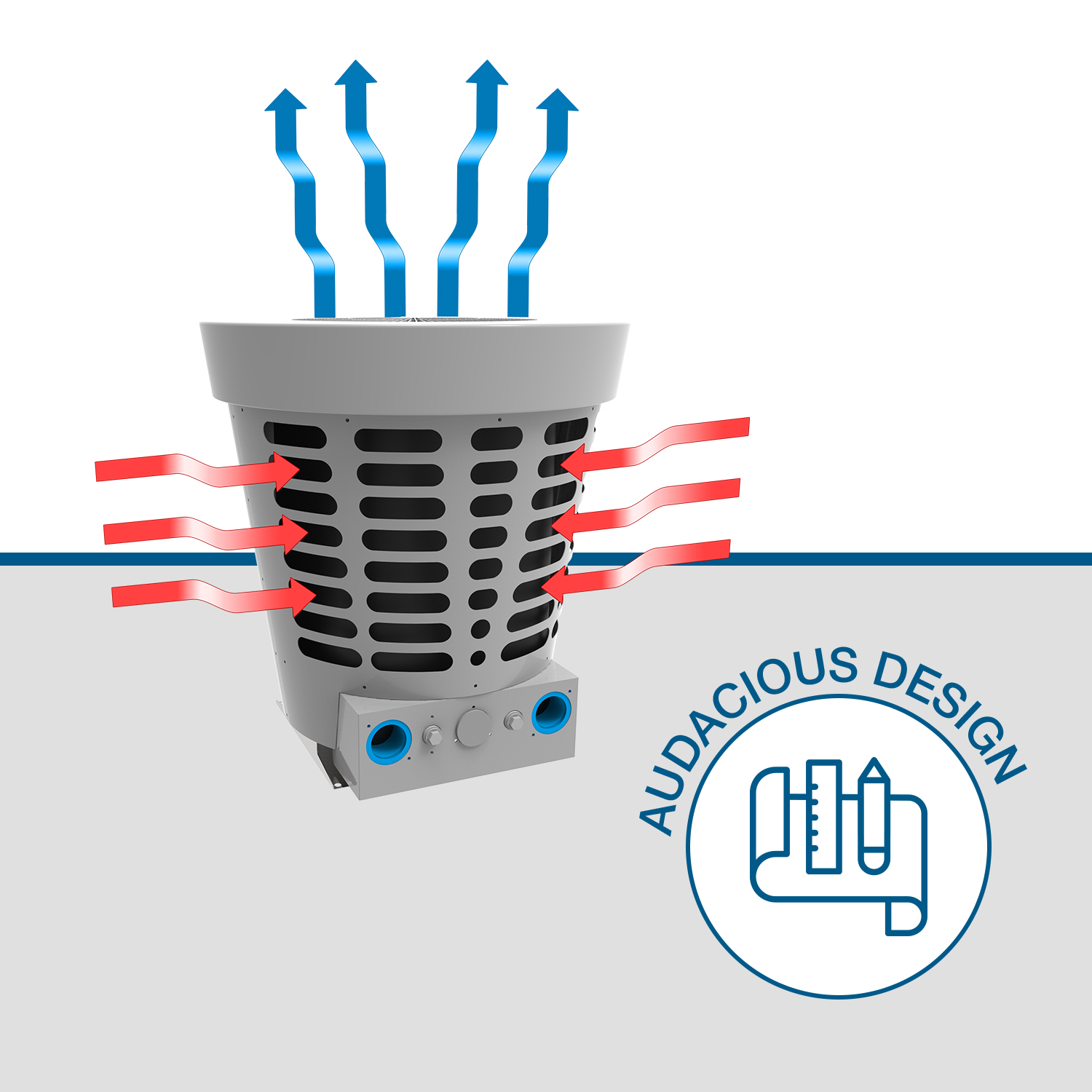

With Full Inverter technology, the heat pump operates in a more stable manner to stay close to the set temperature at all times, avoiding peaks and reducing energy consumption. The Platinium Mini is a silent pump that can be proudly displayed in its outdoor space. Its vertical ventilation enables the evacuation of used air away from the surface where it stand, thus saving significant installation space.

The integrated LED indicators give it a touch of elegance while having a more than useful feature: instant visualization of the operating status of the pump.

Green: target temperature has been reached.
Blue: the pool is heating.
Red: the HP is not in operation.

Easily control your Platinium Mini from your smartphone screen thanks to the WiFi connection built into the heat pump control panel.

Système breveté Antigel Silent efficiency Technologie Wifi Technologie LED Gaz écologique R32 Compatible traitement au sel

advantages

  • + Compact with vertical ventilation
  • + Full Inverter Mode +35% savings
  • + Reversible
  • + Bold ABS Design
  • + >LED technology
  • + Automatic defrosting through cycle inversion
  • + Twisted Tech© titanium heat exchanger
  • + Compatible with salt treatment
warranties
Heat Pump
Compressor
Titanium coil (against corrosion)

full inverter technology +35% energy savings

Popular in the domestic heating and air conditioning sectors, Full Inverter technology adjusts precisely the fan and the compressor, turning the heat pump into a smart pump.

Unlike a traditional heat pump, the Full Inverter compressor starts up gradually. If the set temperature is far from the swimming pool actual temperature, an automatic regulator boosts the heat pump’s capacity for a quick rise in temperature. During swimming season, and to maintain the set temperature, the heat pump operates at reduced power.

This constant operation means that the Full Inverter heat pump operates in a more stable way and preserves the compressor from unwanted starts and stops, resulting in energy savings of over 35%.

bold abs design

In all its audacity and its light gray ABS casing, the Platinium Mini stands out and brings a touch of elegance around your swimming pool.

Popular in the hardware and decoration industry, ABS has demonstrated good resistance to exterior elements without any compromises to its decorative attributes.

integrated wifi connection

Because a heat pump, regardless of its capacity, must be as easy to use, the Poolex Platinium can be controlled via your smartphone over Wi-Fi using a control panel located on the pump.

indicative led technology

LED indicators integrated at the front of the heat pump give it a colourful style while providing the most useful technical functionality: instant visualization of the pump’s operating status.

Vert: target temperature has been reached.
Bleu: the pool is being heated.
Rouge: the heat pump is not in operation.

Modèle Platinium Mini 5 Platinium Mini 7
Swimming pool volume (m3) 35 to 50 50 to 65
Condition:
Air 26°C
Water 26°C
Hygro 80%
Max. power output (kW) 7.06 9.04
Min. power output (kW) 1.99 2.08
Power consumption (kW) 1.04~0.13 1.33~0.14
COP 15.24~6.82 15.18~6.82
Condition*:
Air 15°C
Water 26°C
Hygro 70%
Max. power output (kW) 5.08 7.02
Min. power output (kW) 1.62 1.71
Power consumption (kW) 1.05~0.22 1.44~0.23
COP 7.53~4.83 7.56~4.86
Power supply Mono 220-240V/50Hz
Heating temperature range 15°C ~ 40°C
Cooling temperature range 8°C ~ 28°C
Operating range -10°C ~ 43°C
Flow (m3/h) 2.2 3.2
Refrigerant R32
Packaging dimensions (mm) 700x700x800
Dimensions (mm) 640x640x660
Net / Gross weight (kg) 37 / 45 40 / 47
Noise level at 1 m (dB(A)) <36~<45 <38~<46
Noise level at 10 m (dB(A)) <19~<27 <20~28
Compressor type Rotary
Compressor brand GMCC
Heat exchanger Twisted Tech© Titanium
Function EcoBooster & EcoSilence (inverter) / Heating / Cooling
Load loss (mCE) 1.1 1.1
Maintenance kit including multi-language user manual
Anti-vibration support kit
PVC connectors 50mm 1" ½
Extension cord for wired control (10m)
Condensate discharge pipe
Isothermal winter storage cover
Delivered on a wooden pallet
Product Datasheet
