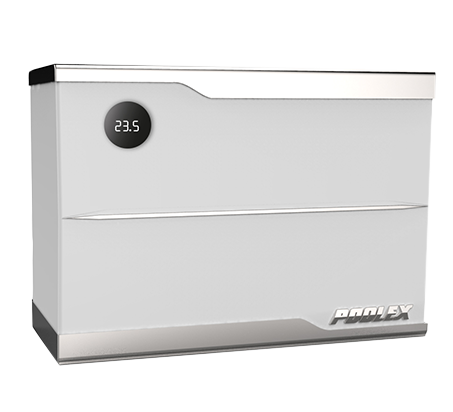

Silent Jet Fi

A heat pump that knows how to be discreet

for pools
up to 150 m³

operates
down to -7°

7 versions
available

A reduced noise level never reached thanks to a concentrate of innovative technologies

Dressed in a sleek-looking casing, the Silent Jet Fi flaunts its cutting edge technologies right next to the swimming pool in full view of all: rear blowing and Full Inverter technology turn it into the quietest heat pump on the market.

Full Inverter technology translates into significant energy savings of up to 35% compared to an on/off heat pump. This is enabled through functionalities such as soft-start and an operating speed which continuously adapts itself according to the pool set temperature. This cutting-edge technology also means that the Silent Jet Fi is extremely quiet since its compressor and fan rarely turn at full speed.

Add to this a ventilation to the rear and the sound volume of this heat pump is further reduced to actually blend into the natural outside noise.

Discreet in its operation, the Silent Jet Fi fits perfectly around the pool and its contemporary design brings a touch of elegance to the outdoor space.

advantages

+ Full Inverter +35% energy savings
+ Silence level never attained
+ Soft start
+ Salt treatment compatible
+ Twisted Tech © Titanium heat exchanger

warranties

Heat Pump

Compressor

Titanium coil (against corrosion)

full inverter technology +35% energy savings

Popular in the domestic heating and air conditioning sectors, Full Inverter technology adjusts precisely the fan and the compressor, turning the heat pump into a smart pump

Unlike a traditional heat pump, the Full Inverter compressor starts up gradually. If the set temperature is far from the swimming pool actual temperature, an automatic regulator boosts the heat pump’s capacity for a quick rise in temperature. During swimming season, and to maintain the set temperature, the heat pump operates at reduced power.

This constant operation means that the Full Inverter heat pump operates in a more stable way and preserves the compressor from unwanted starts and stops, resulting in energy savings of over 35%.

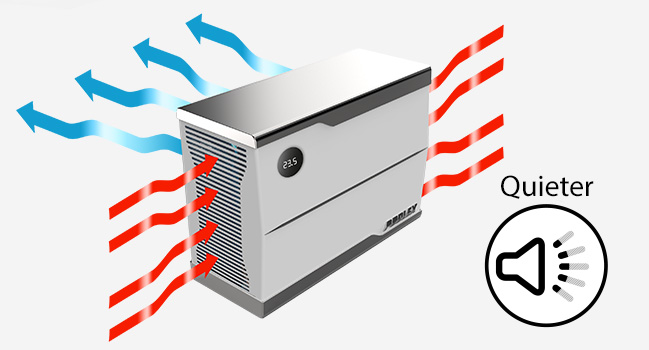

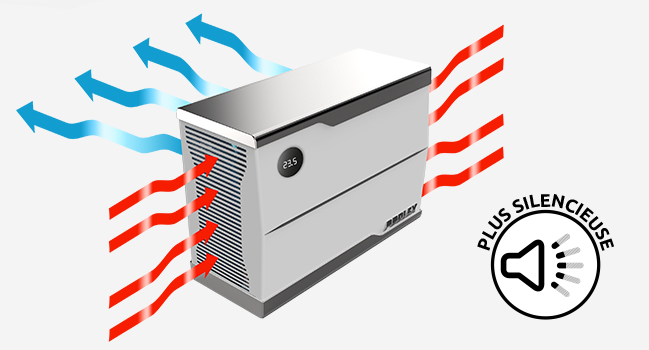

New rear ventilation technology

With a vent blowing to the rear of the heat pump, the Silent Fi operates at an unmatched level of silence.

The added comfort brought by this type of ventilation, away from everything, means that the heat pump no longer requires hiding in a technical shelter, but would rather be installed openly around the swimming pool.

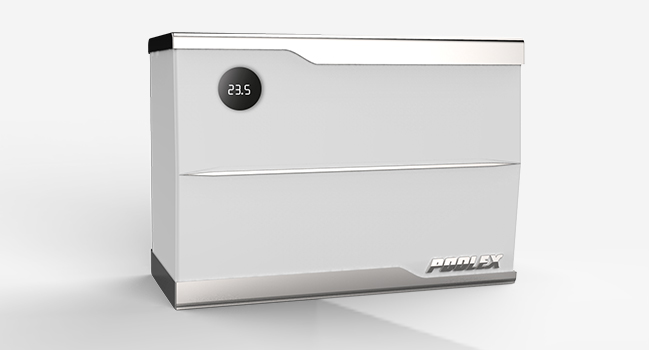

Sleek contemporary design

Dressed in a sleek casing, the Silent Jet Fi heat pump not only blends within the decor, but also adds a modern touch to the outside architecture.

Model		Silent Jet Fi 60	Silent Jet Fi 90	Silent Jet Fi 120	Silent Jet Fi 160	Silent Jet Fi 210	Silent Jet Fi 160 tri	Silent Jet Fi 210 tri
Pool volume (m³)		From 20 to 41	From 30 to 56	From 35 to 70	From 47 to 88	From 70 to 130	From 47 to 88	From 70 to 130
Condition: Air 26°C Water 26°C Hygro 80%	Max. power output (kW)	7.8	12.5	15.5	21.5	27	22	27
	Min. power output (kW)	2.46	2.2	2.4	3.3	4.3	3.3	4.3
	COP	13.5~6.1	16.5~6.1	16.6~6.5	16.7~6.2	16.5~6.3	17.1~6.6	16.5~6.3
*Condition: Air 15°C Water 26°C Hygro 70%**	Max. power output (kW)	6.1	9.05	11.5	16	20.5	16	20.5
	Min. power output (kW)	1.4	1.6	1.9	2.48	3.2	2.6	3.2
	COP	7.5~4.7	7.2~4.7	7.6~4.9	7.7~4.8	7.8~4.7	7.9~5.0	7.8~4.7
Power supply		Mono 230V/50Hz					Tri 415V/50Hz
Heating temperature range		20°C ~ 40°C
Cooling temperature range		8°C ~ 28°C
Operating range		-7°C ~ 43°C
Flow (m³/h)		2~4	4~6	5~7	7~9	9~11	7~9	9~11
Refrigerant		R32
Packaging dimensions (mm)		944x420x802	1043x440x802	1147x454x882		1279x484x972
Dimensions (mm)		870x355x622	975x376x622	1040x406x722		1060x436x822
Net weight (kg)		46	56	69	73	92	89	92
Noise level at 1 m(dB(A))		37~49	38~50	39~51	40~52	45~56	40~52	45~56
Noise level at 10 m(dB(A))		19~28	19~29	20~30	21~31	23~35	21~31	23~35
Compressor type		Hermetic Rotary DC Inverter Compressor
Compressor brand		Toshiba
Heat exchanger		Twisted Tech^© Titanium
Function		Heating and cooling
