Poolex Silverline: the best compromise between performance and price.

A high-performance Mitsubishi compressor and a titanium double-spiral heat-exchanger give it a COP above 6, based on 26/26 conditions*.

Simple to use, the Poolex Silverline is equipped with an LCD control panel with Touch & Go technology.

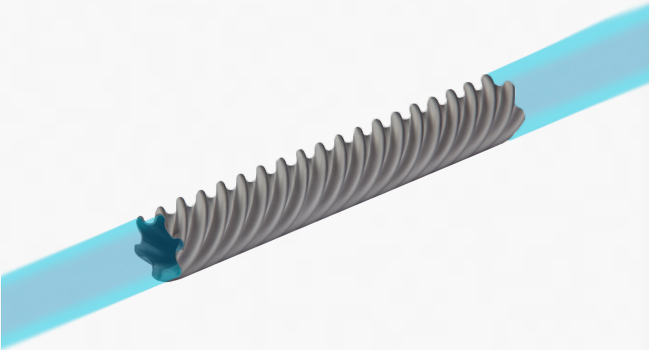

With the new Twisted Tech© heat exchanger technology with titanium heating coil, the swimming pool’s temperature is raised even more quickly.

Available in 7 output ratings from 5.5 to 22 kW, it is suitable for pools up to 110 m3.

Poolex performance at the lowest price.

Features :

  • High performance compressor
  • Anti-UV and anti-corrosion metal casing
  • Ultra-silent and economical
  • Twisted Tech© Titane heat exchanger
  • Automatic thermostat control
  • Compatible with salt treatment

Warranties :

  • Heat pump guaranteed for 2 years
  • Compressor guaranteed for 5 years
  • Titanium heating coil guaranteed for 15 years against corrosion
Antigel
Mitsubishi compressor
Touch&Go
R32 Gas Refrigerant
Silencieux
Compatible with WiFi module
Model Poolex Silverline 55 Poolex Silverline 70 Poolex Silverline 90 Poolex Silverline 120 Poolex Silverline 150 Poolex Silverline 180 Poolex Silverline 220
Swimming pool volume (m3) From 20 to 30 From 30 to 40 From 40 to 50 From 45 to 65 From 65 to 75 From 70 to 90 From 80 to 110
Condition*:
Air 26°C
Water 26°C
Hygro 80%
Capacity (W) 5390 7020 9310 12500 15240 18000 22520
Power consumption (W) 880 1130 1510 2010 2460 2820 3730
COP 6,13 6,21 6,17 6,22 6,20 6,38 6,03
Condition**:
Air 15°C
Water 26°C
Hygro 70%
Capacity (W) 3900 5070 7050 9050 10590 12600 15500
Power consumption (W) 810 1010 1390 1780 2070 2520 3140
COP 4,84 5,02 5,07 5,08 5,12 5,00 4,93
Power supply Mono 230V/50Hz Mono 230V/50Hz Mono 230V/50Hz Mono 230V/50Hz Mono 230V/50Hz Mono 230V/50Hz Mono 230V/50Hz
Max power (W) 1290 1830 2510 3030 3580 3850 6210
Max current (A) 6,26 8,85 11,52 14,50 16,41 18,50 27,10
Heating temperature range 15°C / 40°C 15°C / 40°C 15°C / 40°C 15°C / 40°C 15°C / 40°C 15°C / 40°C 15°C / 40°C
Operating range 10°C / 43°C 10°C / 43°C 10°C / 43°C 10°C / 43°C 10°C / 43°C 10°C / 43°C 10°C / 43°C
Flow (m3/h) 1,86 2,5 3,2 4,01 4,7 5,6 7
Refrigerant R32 R32 R32 R32 R32 R410A R410A
Packaging dimensions (mm) 845 x 330 x 610 905 x 350 x 645 1005 x 350 x 750 1005 x 350 x 750 1005 x 350 x 750 1005 x 350 x 750 1150 x 425 x 820

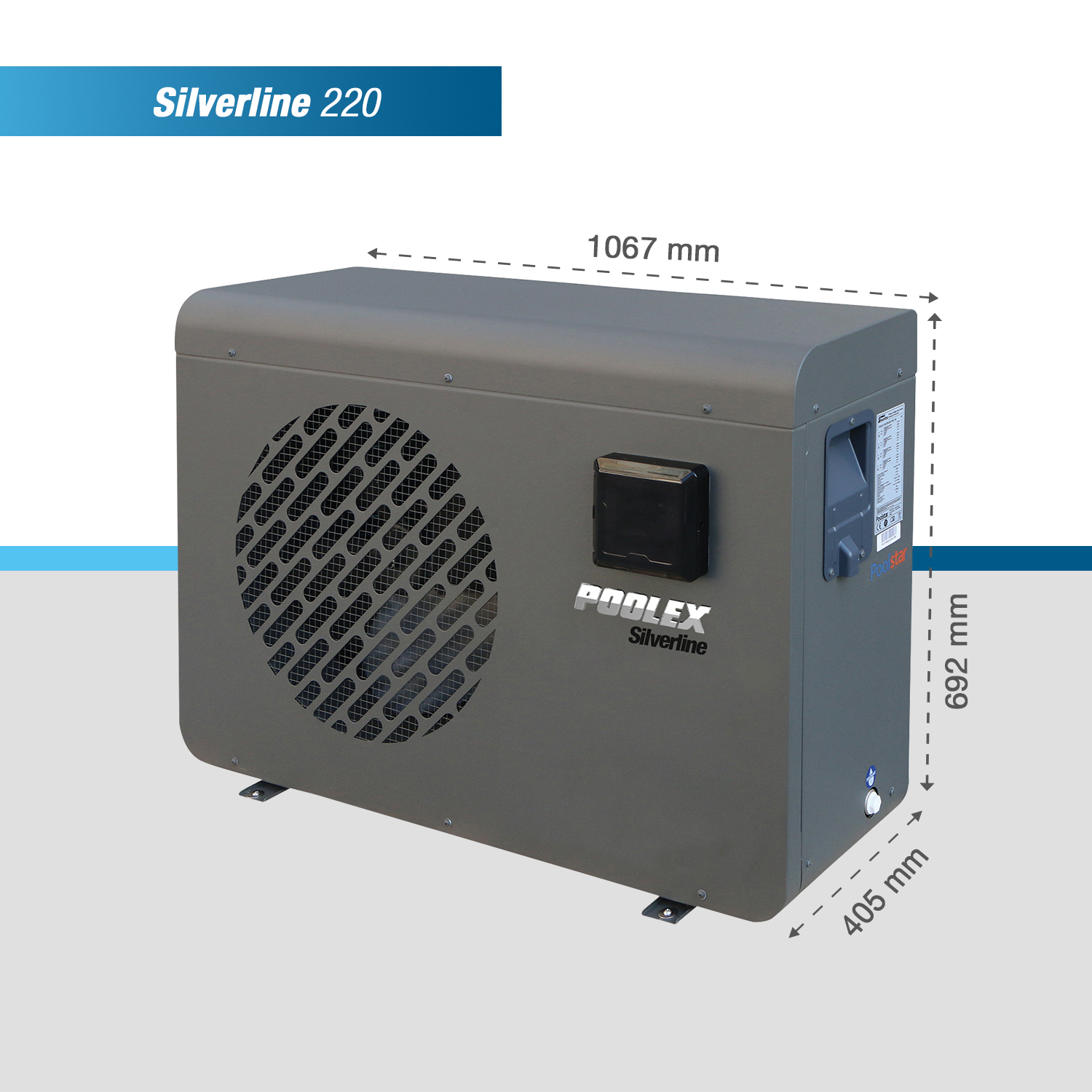

Dimensions (mm) 765 x 310 x 490 827 x 340 x 531 927 x 340 x 636 927 x 340 x 636 927 x 340 x 636 927 x 340 x 636 1067 x 405 x 692
Net/gross weight (kg) 39 / 44 41 / 50 49 / 59 52 / 62 54 / 64 66 / 80 76 / 90
Noise at 1 m(dB(A)) <46 <46 <48 <49 <49 <51 <51
Noise at 4 m(dB(A)) <39 <40 <42 <43 <45 <46 <46
Noise at 10 m(dB(A)) <30 <36 <37 <39 <39 <40 <40
Compressor type Rotary Rotary Rotary Rotary Rotary Rotary Scroll
Brand of compressor Toshiba Toshiba Toshiba Toshiba Toshiba Mitsubishi Panasonic
Heat exchanger Twisted Tech© Titane Twisted Tech© Titane Twisted Tech© Titane Twisted Tech© Titane Twisted Tech© Titane Twisted Tech© Titane Twisted Tech© Titane
Fonction Heating Heating Heating Heating Heating Heating Heating
Load loss (mCE) 0,9 0,9 1 1,10 1,13 1,15 nc

* In conditions Air 26°C, Water 26°C, et Hygro 80% certified by TÜV

** European standards in condition Air 15°C, Water 26°C, et Hygro 70% certified by TÜV

Delivered on wooden pallet

Delivered on wooden pallet

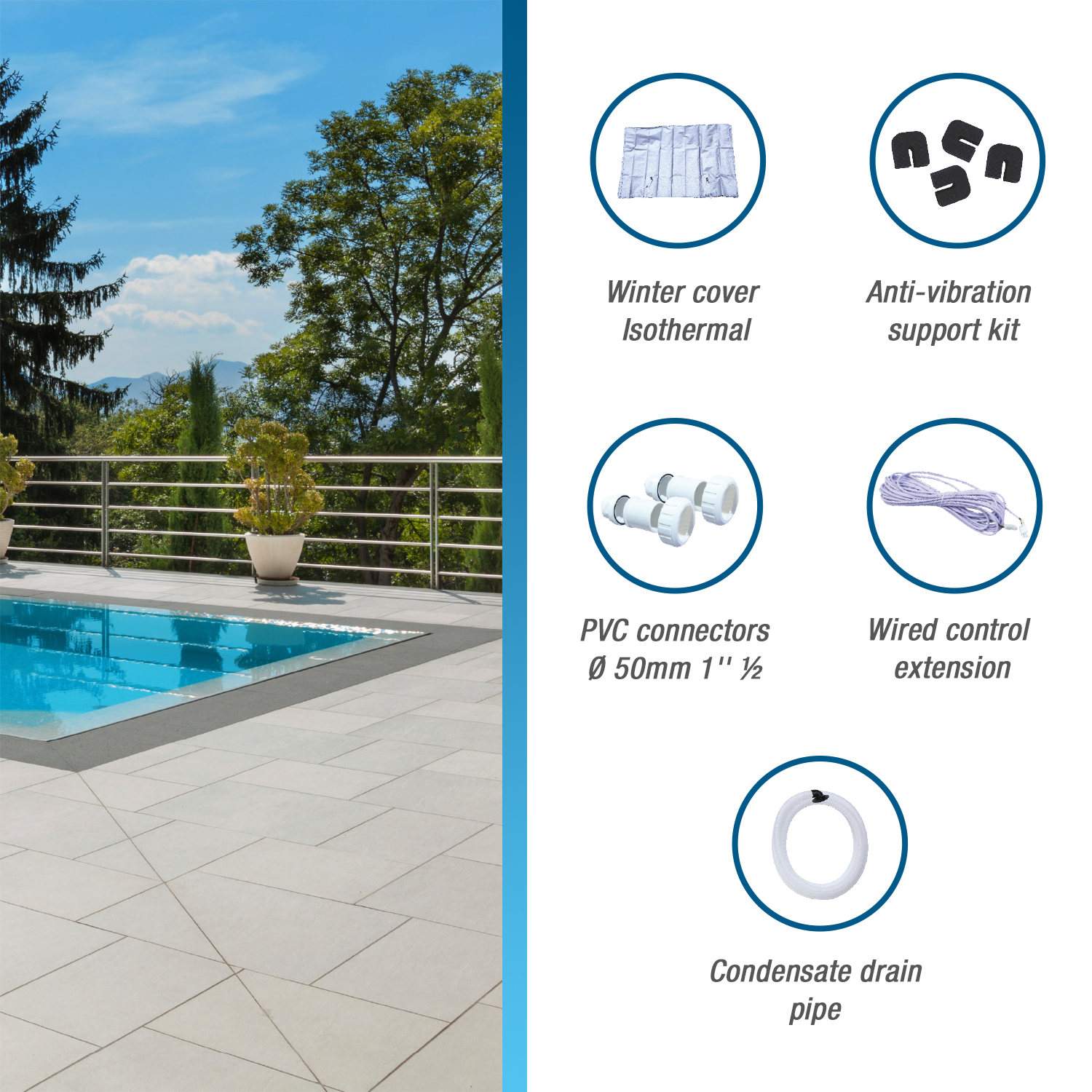

Maintenance kit

Maintenance kit including multi-language usermanual

Anti-vibration support kit

Anti-vibration support kit

Connectors PVC

PVC connector diameter 50mm 1" ½

Extension for wire control

Wired control extension (10m)

Drainage pipe extension

Drainage pipe extension

Guaranteed for 2 years

Heat pump guaranteed for 2 years

Warranty 5ans compresseur

Compressor guaranteed for 5 years

Warranty guaranteed for 15 years échangeur titane

Titanium heating coil guaranteed for 15 years against corrosion
