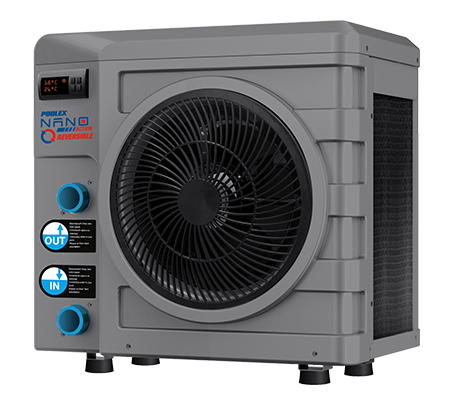

Nano Action Reversible

Heat pump for small pools and spas

for swimming pools
up to 35 m3
down to -5°C
3 versions

The ideal reversible heat pump for swimming pools up to 35m3.

Even more efficient, the Nano action Reversible outperforms all its rivals thanks to its reversible mode able to operate until -5°C.

With its 32/38mm and 1’’ connectors, it can be connected in just a few seconds to any standard filtration system, be it an above ground or in ground swimming pool, or a spa.

Simply plug the Nano Action Reversible to an outlet and heat up your swimming pool.

Designed with the same specifications as a premium heat pump, it features the same efficiency in an ultra compact casing. Its light weight enables anyone to carry it easily.

Gaz R32 Silent efficiency


  • + Plug & Play
  • + Reversible
  • + Operates down to -5°C
  • + Compatible all above ground swimming pools
  • + Ligth & compact
Heat Pump

reversible down to -5 ° C

The Nano Action Reversible has nothing to envy of large heat pumps. With its reversible functionality, it cools down the water in your swimming pool just as well as it heats it up. This is particularly useful for small above-ground swimming pools where the water tends to heat up quickly under the action of the sun's rays, causing algae growth on the liner.

With its capacity to operate down to -5 °C, one can comfortably extend the swimming season from Spring to Autumn.

plug & play

With its Plug & Play functionality, the Nano Action can be installed quickly with a simple connection to a power outlet. It does not require any bypass. The 5 meters long cable is equipped with 10 mA differential protection ensuring safe use.

ultra compact

As a heat pump dedicated to small pools and above ground swimming pools, the Nano Action, and its reduced dimensions at 40 cm wide by 39 cm high, knows how to be discreet. This heat pump sits next to the pool and blends right within the decor..

connects to all above ground pools

Compact and packed with functionalities designed for ease of use, the Nano Action heat pump follows closely with the trend of above ground pools that are installed and heat up in just a couple of hours.

Model Nano Action Reversible 3 Nano Action Reversible 4 Nano Action Reversible 5
Swimming pool volume (m3) 10 to 21 15 to 28 20 to 35
Air 26°C
Water 26°C
Hygro 80%
Capacity (W) 3,010 4,200 5,010
Power consumption (W) 540 760 910
COP 5.61 5.50 5.50
Air 15°C
Water 26°C
Hygro 70%
Capacity (W) 2,200 3,100 4,030
Power consumption (W) 490 690 900
COP 3.93 4.08 4.03
Power supply Mono 220-240V/50Hz
Heating temperature range 15°C ~ 40°C
Cooling temperature range 8°C ~ 28°C
Operating range -5°C ~ 43°C
Max. power (W) 900 1,200 1,500
Flow (m3/h) 2 2 2.5
Refrigerant R32
Packaging dimensions (mm) 460x370x415
Dimensions (mm) 400x280x385
Net / Gross weight (kg) 18 / 20 25 / 29 26 / 30
Noise level at 1 m (dB(A)) <53 <55 <56
Noise level at 10 m (dB(A)) <33 <35 <36
Compressor type Rotary
Compressor brand Toshiba
Heat exchanger Twisted Tech© Titanium
Function Heating / Cooling
Load loss (mCE) 0.8
heat pump configurator A simple tool to find the perfect heat pump for any type of swimming pool
Packaging Ready-to-Buy
Multi-language installation and user manual
PVC connectors Ø 32-38mm
Product Datasheet Documents
