The variable speed filtration pump for use in pools up to 80m³
3 manually adjustable speeds | Compatible with heat pump | Self-priming up to 1.5m
Ultra silent
Compatible with saltwater pools
Self-priming pump
Product Highlights
Is your pool difficult to maintain?
The Onduline pump simplifies the management of your pool while optimizing energy consumption.
With the Onduline pump, you benefit from silent filtration and controlled electrical consumption. Its variable speed design allows you to adjust the flow according to your pool’s needs, reducing component wear and ensuring long-lasting performance.
Plug & Play Installation
The Onduline pump is easy to install thanks to its Plug & Play system. It connects directly to a standard power outlet, with no additional electrical setup required. Commissioning is immediate, with no adjustments or technical handling.
A practical solution for quick and hassle-free installation.
Power and efficiency
The Onduline pump features 3 adjustable speeds to adapt the water flow to your pool’s requirements. With a flow rate of up to 22 m³/h and compatibility with saltwater pools up to 6 g/L, it ensures optimal circulation while achieving up to 80% energy savings.
Operating with a low noise level (under 45 dB at low speed), it guarantees a peaceful swimming experience while maintaining constant and improved filtration.
Long-term maintenance cost reduction
The Onduline pump is designed to operate reliably and durably. Its self-priming system up to 1.5 m facilitates installation and start-up, while its permanent magnet synchronous motor extends its lifespan by reducing wear.
By choosing the Onduline pump, you are investing in a solution that reduces long-term maintenance costs while delivering optimal performance during every filtration session.
| Onduline 1.5 HP | |||||||
|---|---|---|---|---|---|---|---|
| Reference | ONDULINE-1.5 | ||||||
| Useful Power (HP) | 1.5 | ||||||
| Speed Modulation (rpm) | 1000 - 3450 | ||||||
| Maximum Flow Rate (m³/h) | 22 | ||||||
| Flow Rate at 8 m HMT (m³/h) | 18 | ||||||
| Maximum Head Height (m) | 15 | ||||||
| Power Supply | Plug & Play | Single-phase 230V-50Hz | ||||||
| Current (A) | 6 | ||||||
| Noise Level (dB) | <45 | ||||||
| Connection Diameter | 2'' x 2'' / D50 & D63 mm | ||||||
| Motor Type | Synchronous with permanent magnets | ||||||

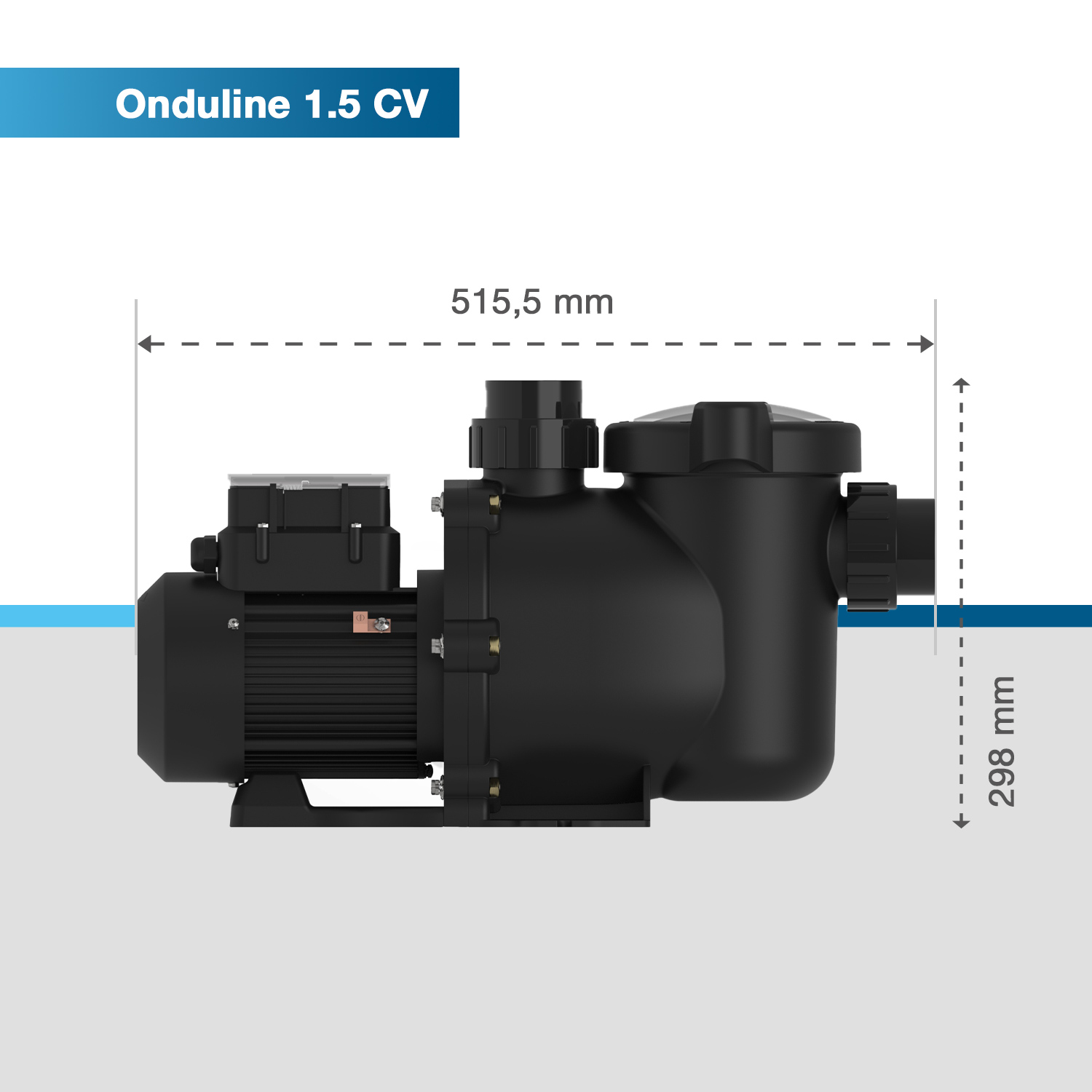

| Dimensions (L x W x H) in mm | 540 x 220 x 315 | ||||||
| Weight (kg) | 8.75 | ||||||
| Warranty | 2 years | ||||||
